NB-IoT three-phase power meter with CT
Code 01350-4060-00

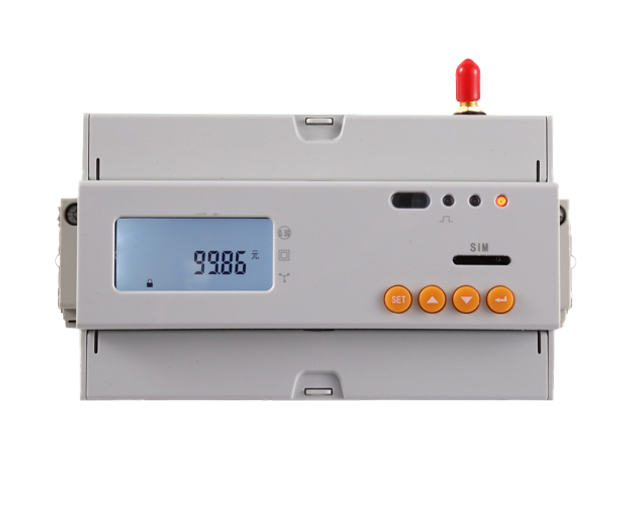

The MyPM-03TA with ammeter transformers is a power meter that can be used in projects that involve monitoring the electrical energy consumed by a system and sending the data, via M2M NB-IoT wireless connectivity, to cloud platforms capable of analyze and aggregate them.
Equipped with a disconnector, the MyPM-03TA is capable of interrupting electricity; useful feature if you use a Pay per Use (prepaid) energy supply service.
- Power supply and DIN rail installation.
- Equipped with displays to check the readings and set parameters in real time.
- Data visualization on Contact Pro IoT in real time. Transmission frequency can be set based on the activated NB-IoT plan.
Main advantages of the TA
- Suitable for residential and commercial systems.

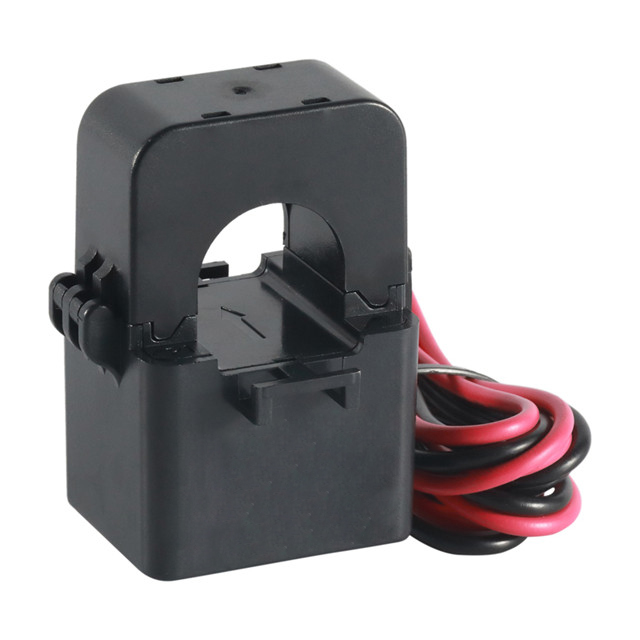

- Wide range of current transformers available, from 50A to 1,000A.
- One current transformer per phase.
Contact the SmartDHOME team for more details.
Technical Specifications MyPM03S
Nominal voltage [Vn]: 380 Vac (3 x 230 Vac)
Maximum current [Imax] CT 24 mm: 300 A
Maximum current [Imax] CT 36 mm: 600 A
Maximum current [Imax] CT 50 mm: 1 kA
Protocols: NB-IoT (band 20) and 2G (backup)
Accuracy: < 0.5 sec/day
Operating temperature: -25°C ~ 55°C
Dimensions: 144mm x 88mm x 70mm (14 DIN modules)
Commercial Information
MyPM-03TA Product Code: 01350-4060-00
Product Code 150A 24mm openable CT: 01350-4750-00
Product Code 300A 24mm openable CT: 01350-6010-00
Product Code 600A 36mm openable CT: 01350-6015-00
Product Code 1,000A 50mm openable CT: 01350-6020-00
Package contents: MyPM-03TA, chosen TA, NB-IoT antenna, SIM card extractor, user manual.
Monitor all IoT devices from the Contact Pro IoT platform
- Predictive Maintenance
- Adaptive Energy Management
- Qualitative data analysis
- Remote programming of parameters
