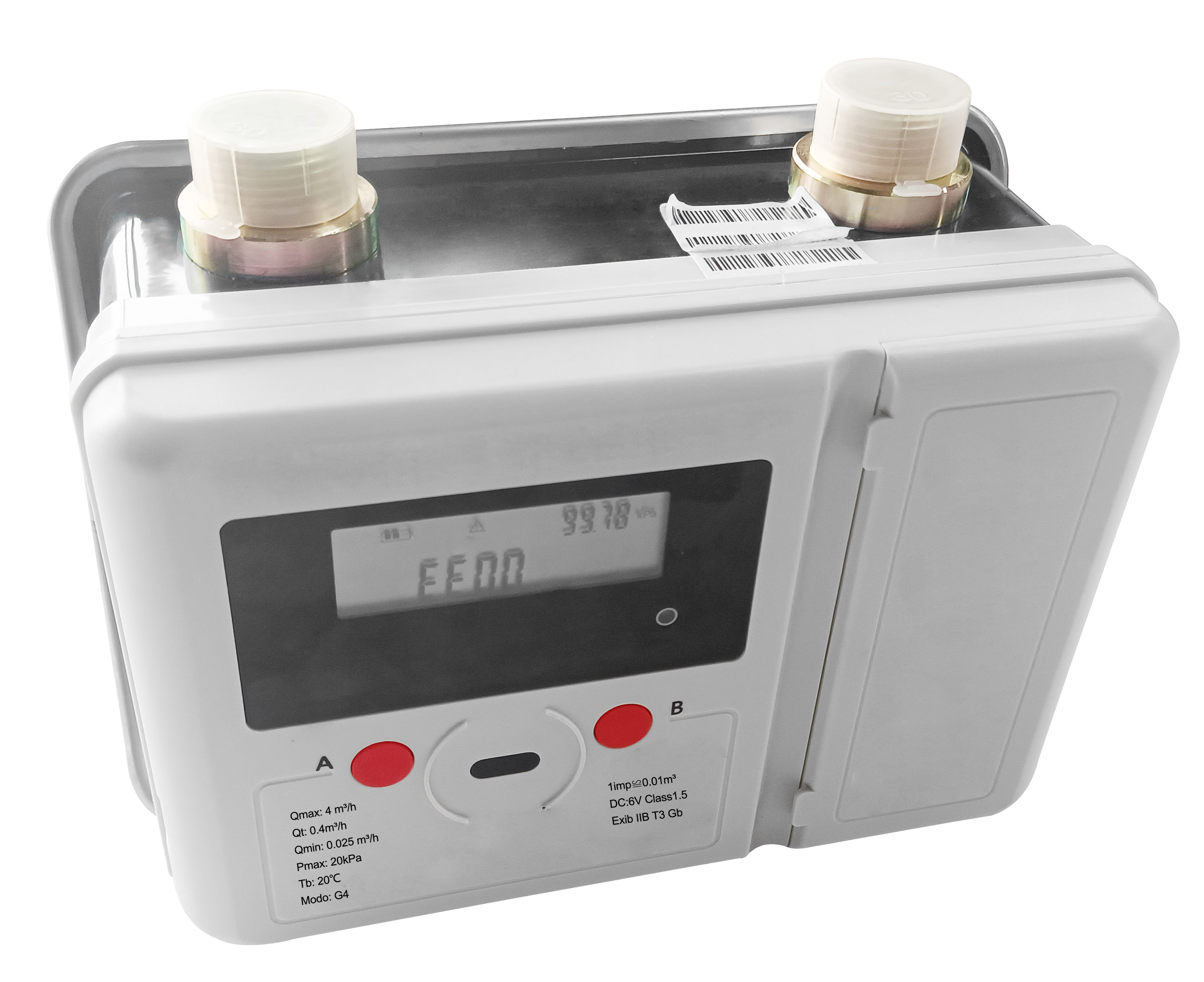

Gas meter NB-IoT
Code 01350-5000-00 ~ 01350-5520-00
MyGMS is the gas meter that can be used in projects that involve monitoring gas consumption and sending data, via M2M NB-IoT connectivity, to the Contact Pro IoT cloud platform, capable of analyzing and aggregating them.
All models in the line are equipped with a shut-off valve capable of interrupting the gas supply if anomalous data is detected (possible leaks) or the maximum expected budget is reached (Pay per Use delivery services).
- Battery or 5 Vdc powered.

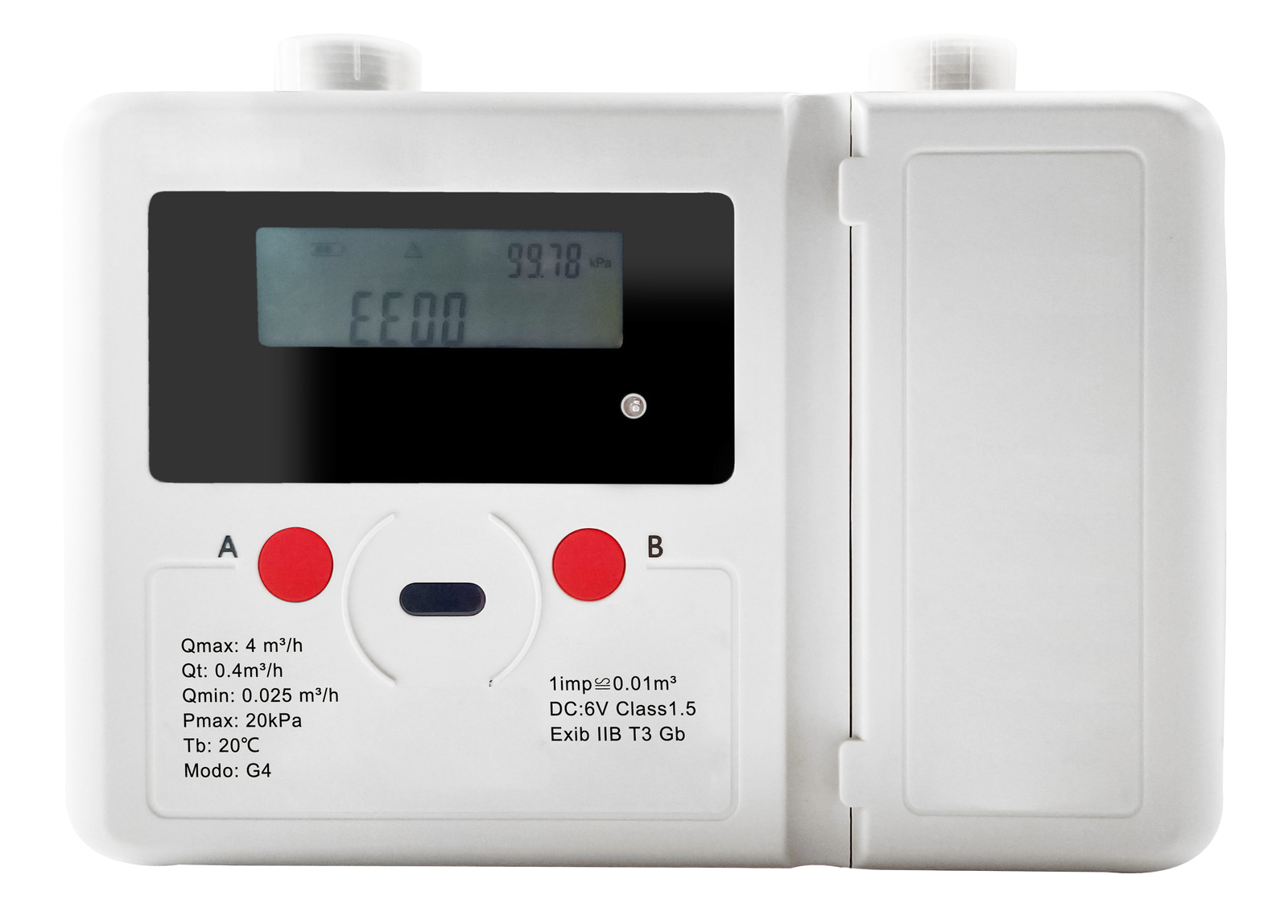

- Equipped with displays to check the readings and set parameters in real time.
- Data visualization on Contact Pro IoT, or third-party platform, in real time.
- Transmission frequency can be set based on the activated NB-IoT plan.
Contact the SmartDHOME team for more details.
Technical specifications
Power supply: 24 Vdc, 4 AA batteries (backup)
Maximum current: ≤500mA
Communication protocol: NB-IoT (band 20) and 2G (backup)
Accumulation: 99999.999 ~ 0.001
Internal losses: ≤ 0.55 dm3 /h
Operating Humidity: ≤93% non-condensed
Operating temperature: -10°C ~ 40°C
Protection level: IP65
Dimensions: change depending on the model
Commercial Information
MyGMS Line Product Code: 01350-5000-00 ~ 01350-5520-00
Sales unit: 1
Package contents: MyGMS, user manual.
Why choose ultrasonic meters?
- They maintain the same millimeter precision throughout the life of the product. This leads to precise measurements over time.
- The detection of anomalies, which negatively affect the measurement, occurs quickly and repairs will be equally quick
- Data collection is carried out remotely, this allows for an efficient redistribution of resources.
- They have no mechanical parts, so they are not affected by wear and tear and require minimal maintenance.
Monitor all IoT devices from the Contact Pro IoT platform
- Predictive Maintenance
- Adaptive Energy Management
- Qualitative data analysis
- Remote programming of parameters
