Single-phase and three-phase Micro Power Meter

Code 01350-4670-00 and 01350-4680-00

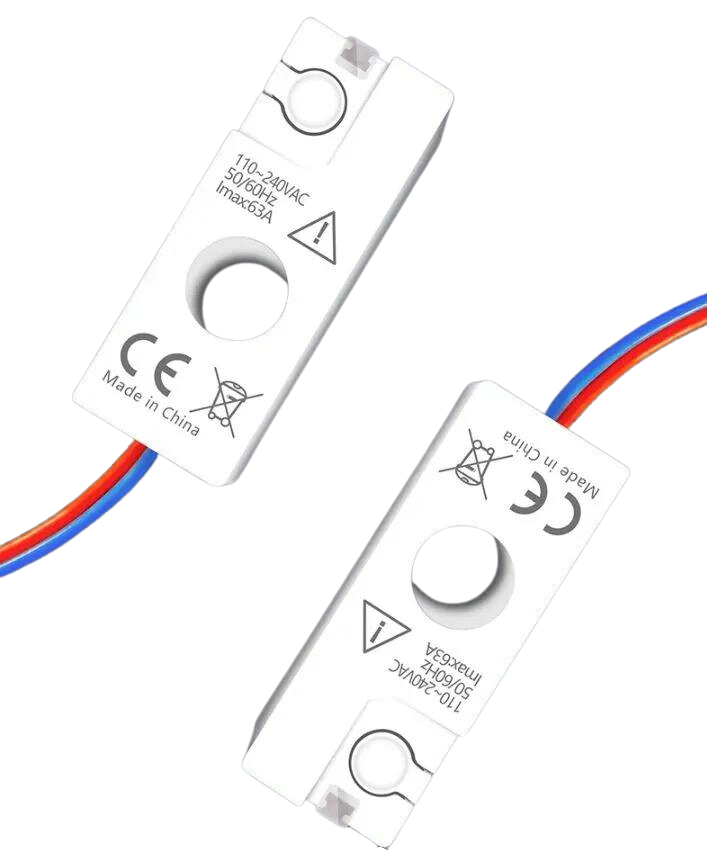

MEM01WT and MEM03WT are energy monitoring devices for single-phase and three-phase systems.
Installed on any switch, they detect and analyze the electrical consumption data of each circuit in the home, helping users reduce energy consumption.

Thanks to the free application, the measurements can be conveniently viewed from a smartphone. If anomalies are identified (e.g. high circuit temperature or excessive power), an alarm notification will be sent via the application.

Contact the SmartDHOME team for more details.

more information

Free application "Smart Life"

Smart Life is the free application on which all consumption data will be shown in real time and on which alarm notifications will arrive.

Real-time consumption detection

Connected to any switch, Micro Power Meters detect consumption, helping the user to implement virtuous energy saving practices.

Warnings and alarms in case of anomalies

If the Micro Power Meters detect anomalous data, they will send a notification to the user via the free "Smart Life" app.

Technical Specifications MEM01WT

Nominal voltage: 110~240 Vac – 50/60 Hz

Communication type: Wi-Fi

Maximum current: 63A

Operating temperature: -25°C ~ 60°C

Dimensions: 46.8mm x 17.8mm x 21.3mm

Technical Specifications MEM03WT

Nominal voltage: 208~415 Vac – 50/60 Hz (phase/phase)

Communication type: Wi-Fi

Maximum current: 63A

Operating temperature: -25°C ~ 60°C

Dimensions: 46.4mm x 53.0mm x 21.3mm

Commercial Information

Product Code MEM01WT: 01350-4670-00

Product Code MEM03WT: 01350-4680-00

Package contents: MyPM, NB-IoT antenna, SIM card extractor, user manual.

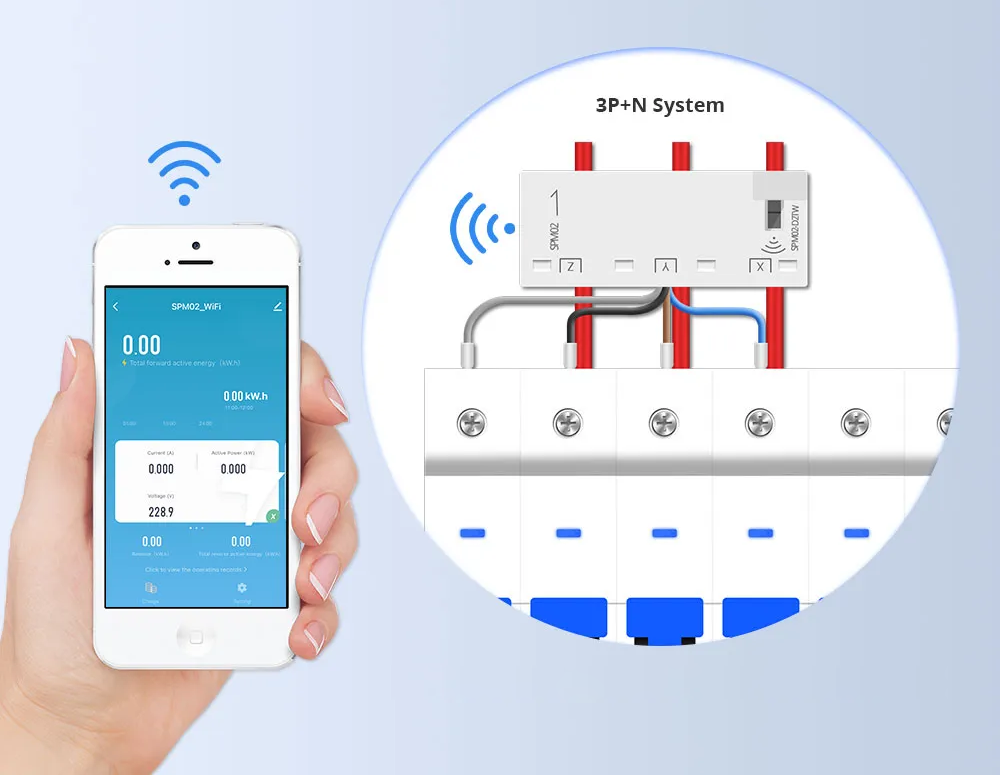

Monitor devices from a single APP

"Smart Life" is an application designed for controlling smart devices and remotely viewing data.

Simultaneous connection and control of all devices installed.
Creating home automations.
Interaction via voice control with devices.

Available on iOS and Android.
